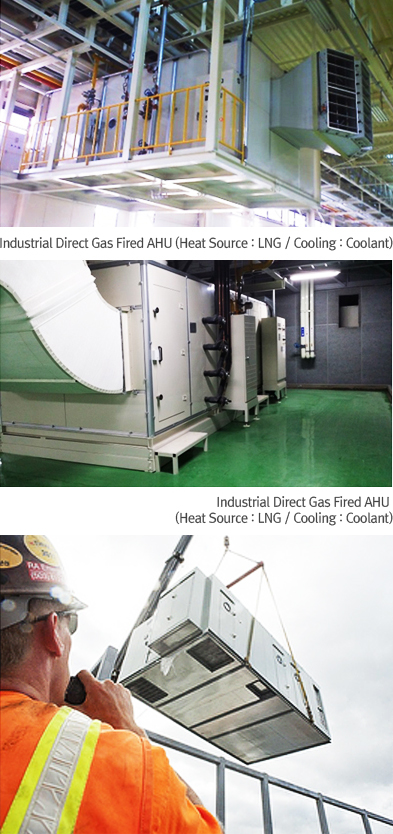

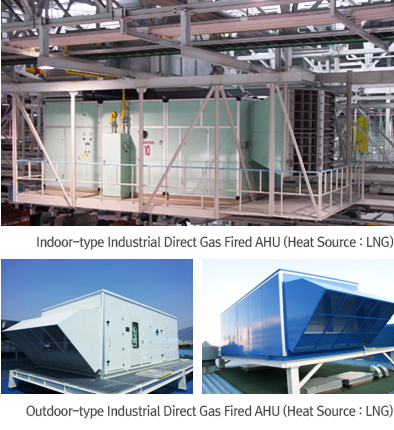

KTE’s direct gas fired AHU is an effective equipment to solve the issues related to negative indoor pressure in the industrial type of buildings and effectively blocks invasion of pollutants by bringing fresh air from outside.
Model
Air Vol. (㎥/h)
Heating (Kcal/h)
Fan Pressure (mmAq)
Gas Consumption (㎥/h)
Size (mm)
Max.
In-Operation
TDA-030
30,000
375,000
40
38
23
1,900(L) 3,830(W) 1,600(H)
TDA-060
60,000
625,000
40
64
38
2,600(L) 4,320(W) 1,950(H)
TDA-080
80,000
812,500
40
83
50
2,750(L) 4,600(W) 2,130(H)
TDA-090
90,000
937,500
40
96
57
3,000(L) 4,600(W) 2,130(H)
TDA-120
120,000
1,250,000
60
120
87
6,400(L) 3,200(W) 3,500(H)
KTE is also developing the direct gas fired unit, embedded with an effective cooling function, and became the 1st company that acquired related patent in 2013.
