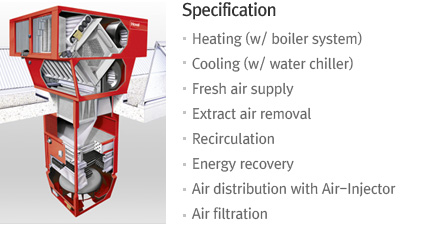

- RoofVent® LHW incorporates a plate heat exchanger that recovers energy from the extract air and transmits it to the supply air.
| Technical Data |
LHW-5 |
LHW-8 |
LHW-10 |
Air flow rate
(㎥/h) |
5,000 |
8,000 |
10,000 |
Heating Capacity
(kW) |
Up to 55,087 |
Up to 116,470 |
Up to 143,496 |
Cooling Capacity
(kW) |
- |
- |
- |
| Range(m x m) |
21 x 21 |
26 x 26 |
32 x 32 |
| Weight(㎏) |
491 |
692 |
706 |

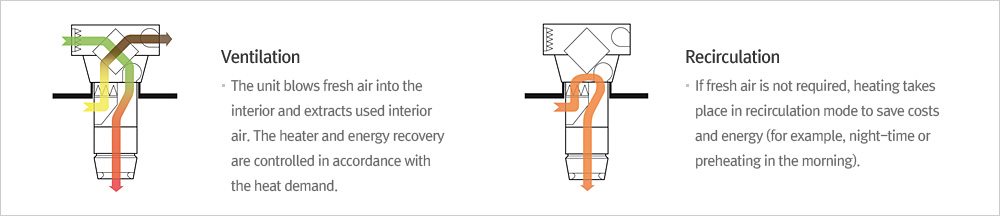

- RoofVent® is a roof ventilation unit for supplying fresh air and removing extract air. RoofVent® LHW incorporates a plate heat exchanger that recovers energy from the extract air and transmits it to the supply air.

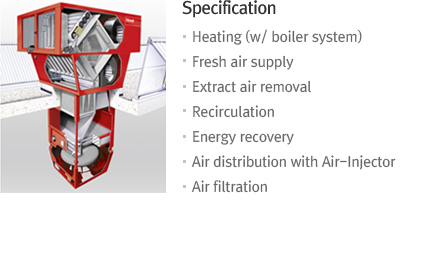

- RoofVent® LHKW is similar in design to RoofVent® LHW: It supplies fresh air and maintains the right temperature in high spaces and incorporates a plate heat
exchanger.
| Technical Data |
LHKW-5 |
LHKW-8 |
LHKW-10 |
| Air flow rate(㎥/h) |
5,000 |
8,000 |
10,000 |
| Heating Capacity(kW) |
Up to 55,087 |
Up to 116,470 |
Up to 143,496 |
| Cooling Capacity(kW) |
Up to 39,465 |
Up to 79,619 |
Up to 98,203 |
| Range(m x m) |
21 x 21 |
26 x 26 |
32 x 32 |
| Weight(㎏) |
521 |
744 |
758 |
