알루미늄 판형 전열교환기

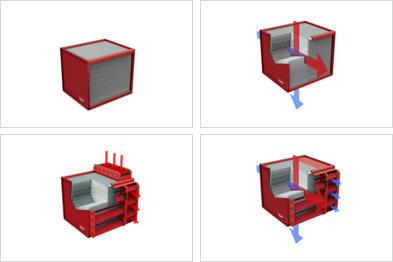

  • Hoval plate heat exchangers are air/air heat transmitters made of aluminium or stainless steel. They are used for energy recovery in air handling systems and process technology.

Length(m) 0.4-2.4m
Width(m) 0.2-3.0m
Air Flow(㎥/h) 500-100,000
Certification - Eurovent Certified
- Hygiene Certified
Advantages - Reduces CO2 emissions
- Dry efficiencies in excess of 80%
- Compact designs
- Ready for installation with bypass and dampers
HOVAL 판형 열교환기

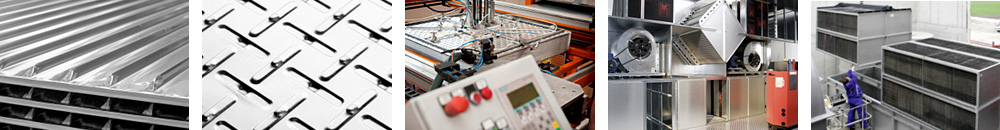

  • Cross-flow plate heat exchangers from Hoval are highly efficient providing dry efficiencies in excess of 80 %. This makes them superior to comparable counterflow exchangers. Hoval exchangers have a compact design resulting in space saving and thus lower costs to the air handling unit.

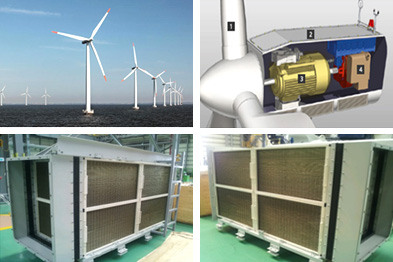

H사 풍력발전설비 냉방(Cooling)시스템
  • The nacelle air cooling system is intended to dissipate the interior heat to the environment without mass transfer.
  • Successfully installed by KTE with Hoval PWT unit to support Company H’s project in Korea.

Project Wind Power Generation Nacelle Cooling System in 2012
Site Republic of Korea
Cooling System Hoval PWT Heat Exchanger
Motor Made in German
HVAC Project Manager KTE
Maintained Temp Below 45℃
